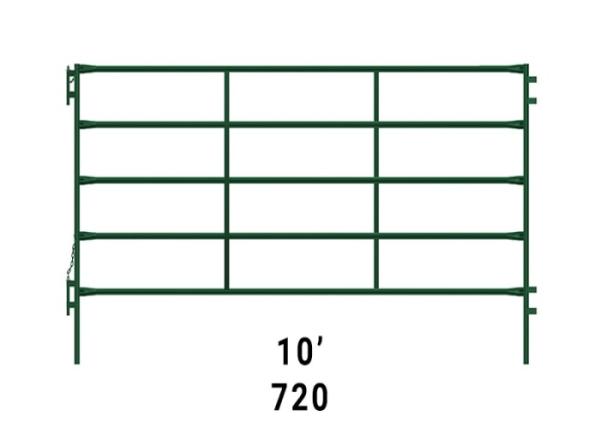

Green Painting 6 8 10 12 16 24 Ft Foot 4 Gauge Livestock Cattle
Horse Corral Fence Panels

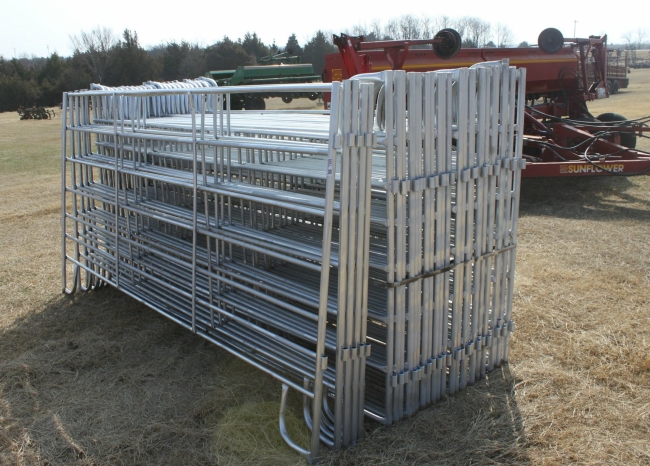

1. Oval Rails Metal Galvanized Cattle Corral Panels
The most popular cattle fence panel is the oval pipe which is also
the strongest fencing
among the three types.
Vertical frame RHS40mm x oval 30x60mm
Vertical frame RHS40mm x oval 40x80mm
Vertical frame RHS50mm x oval 40x80mm
2. Welding Processing of Cattle Corral Panels
Firstly, we prepared the pipe (square pipe or the round pipe, the
elliptic).
Then put the pipe on the welded shaping machine, the pipe are
galvanized,
welded the pipe together.
Then make the spot smoothing;
Then silver painted.
3. Square Rails Metal Galvanized Cattle Corral Panels
1) The square post is also an affordable cattle fence panel
2) More durable than a round one
3) Pipe size can be RHS40mm or RHS50mm
4. Round Pipe Metal Galvanized Cattle Corral Panels
Round post its low price
The ability to fill one container in large numbers during shipping
which means reduced
transportation costs;
Pipe size can be 32mm, 40mm, 42mm, 48mm etc.
5. According to Horizontal Rail Type,there are round pipe panel,
square pipe panel, oval pipe panel as below.
Cattle Panel
| Material | Pre hot dipped galvanized steel pipe |
| Zinc coating | More than 15 microns |
| Welding | Fully welded post & brackets, heavy duty hinges |
| Welds | Each rail/bar is fully welded, and protected with epoxy paint |
| Accessories | Steel caps, lugs, feet and 2 pins |
1) Round Pipe Style Specification
| Size | Height: 1.6m, 1.8m, etc.
Length: 2.07m, 2.09m, 2.1m, etc. |
| Vertical pipe | 32mm O.D x 1.6mm thickness
42mm O.D x 1.6mm thickness |
| Horizontal rails | 32mm O.D x 1.6mm thickness
42mm O.D x 1.6mm thickness |
| Rails | 1.8m height with 6 bars/rails
1.6m height with 5 bars/rails |
2)Square Pipe Style Specification
| Material | Pre hot dipped galvanized steel pipe |
| Zinc coating | More than 15 microns |
| Size | Height: 1.6m, 1.8m, etc.
Length: 2.07m, 2.09m, 2.1m, etc. |
| Vertical pipe | 50 x 50mm RHS x 1.6mm thickness
40 x 40mm RHS x 1.6mm thickness |
| Horizontal rails | 50 x 50mm RHS x 1.6mm thickness
40 x 40mm RHS x 1.6mm thickness |
| Rails | 1.8m height with 6 bars/rails
1.6m height with 5 bars/rails |
3)Oval Pipe Style Specification
| Material | Pre hot dipped galvanized steel pipe |
| Zinc coating | More than 15 microns |
| Size | Height: 1.6m, 1.8m, etc.
Length: 2.07m, 2.09m, 2.1m, etc. |
| Vertical pipe | 50 x 50mm RHS x 1.6mm thickness
40 x 40mm RHS x 1.6mm thickness |
| Horizontal rails | 30x60mm oval rail x 1.6mm thickness
40x80mm oval rail x 1.6mm thickness
40x120mm oval rail x 1.6mm thickness |
| Rails | 1.8m height with 6 bars/rails
1.6m height with 5 bars/rails |
4)Gate Specification
| Cattle Panel Gate | 2200mm x 2000mm (Height x Length) |
| Frame | Horizontal & Vertical pipe: 50 mm x 50 mm RHS x 1.8mm thickness
with fully welded caps |
Cattle Gate
Horizontal Rails | 40mm x 80mm x 1.6mm thickness, 6 pieces oval rails |
| Man Gate | Size: 2200mm x 750mm (Height x Inner Width)
Pipe: 50 x 50 x 2mm |
| Finishing | Pre hot dipped galvanized material
Zinc coating: more than 15 microns
Fully welded oval pipes, post & brackets, heavy duty hinges |
6. Main Markets
Australia, European countries, Canada, America and Asia countries.
7. Application
Farm corral,keep animals safe and protect your farm fields from
wild animals or
thieves. We have our own factories which manufacturing
tube,pipe,steel channel and other steel
accessories,free customization.

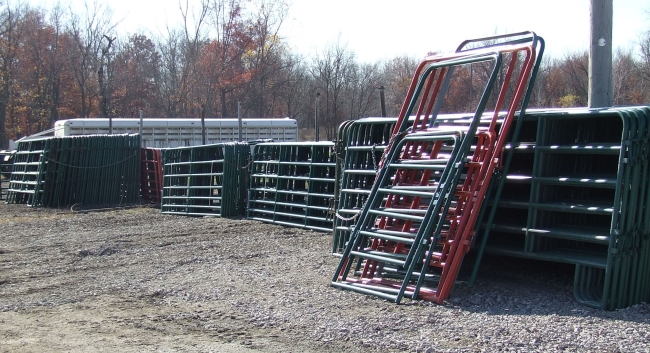

8. Other Livestock Panels or Round Pen size
Cattle Corral Panels - 5 Bar rails1.6m High, 6 Bar Rails 1.8m High
or 7 Bar 1.6m & 8 Bar 1.8m high panels
Available components include:
- 1.4m Panel
- 1.8m Panel
- 2.1m Panel
- 3m Panel
- 2.1m Gate
- 3m Gate
- 4.2m Double Gate
- 2.1m Man Gate in Panel
- Man Gate
- Swing Race Gate
- Sliding Race Gate
- Race Bow
- Adaptor Post
9. Surface treatment
PVC coated, Powder coated, Painted. and the color depend on your
choice.
