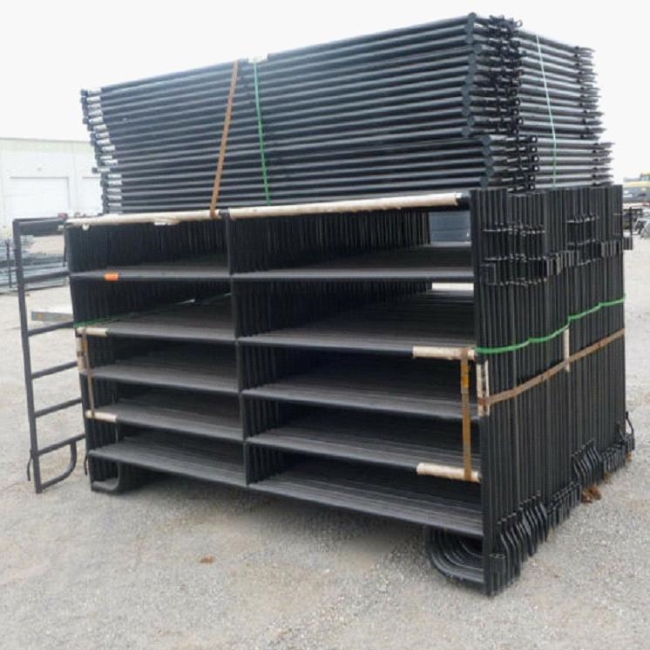

Portable Free Standing Livestock Sheep Goat Cow Cattle Horse Corral
Fence Panels System
1. Product Introduction
heavy duty cattle panel is usually called cattle panel,horse
panel,livestock panel,corral panel etc.
It is fabricated with welded hot dip galvanized pipes for the use
of fencing livestocks, such us cattle,cow,bull,calves,Dairy
sheep,goat,dog
Process
Firstly,we prepared the pipe(round pipe or the oval pipe,the square
pipe),then put the pipe on the welded shaping machine,the pipes are
galvanized,welded the pipe together,then make the spot
smoothing,then silver painted.
Description
Material hot dipped galvanized steel pipe
Size (H*L) 1.8*2.1m; 1.6x2.1; 1.2x2.5
Horizontal Pipe
three types( round,square,oval)
1) round pipe:25mm, 32mm, 42mm, 48mm
2) square pipe:30*30mm; 40*40mm; 50*50mm
3) oval pipe:30*60mm; 40*80mm; 115x42mm
Structural Style
one set=one net+two pins
Bars/Rails 1.8m high with 6 bars/rails or 1.6m high with 5
bars/rails or 1.2m high with 3 bars/rails
Applications Used in protecting of animals
Main Markets
Australia,New Zealand,Canada,US,European countries and Asia
countries
Different specifications are available according to customers'
special inquiry or detailed drawings.
2. Specifications:
a. Square Tubes Style:
| Material | Pre hot dipped galvanized steel pipe |
| Zinc Coating | More than 15 microns |
| Height x Length | 1800mm x 2100mm ( 6 rails ); 1600mm x 2100mm ( 5 rails ) |
| Vertical Pipe | 40 x 40 mm; 50 x 50 mm |
| Horizontal Pipe | 40 x 40 mm; 50 x 50 mm |
| Welding | Fully welded |
| Finishing / Surface Treatment | 1). Wipe antirust paint on welding seams
2). Wipe antirust paint on welding seams + silver spray painted on
the welding seams
3). Silver spray painted on the whole panel |
| Accessories | 1 set = 2 rain caps + 2 "U" lugs + 2 "L" lugs + 2 pins + 2
footplates |
b. Oval Tubes Style:
| Material | Pre hot dipped galvanized steel pipe |
| Zinc Coating | More than 15 microns |
| Height x Length | 1800mm x 2100mm ( 6 rails ); 1600mm x 2100mm ( 5 rails ) |
| Vertical Pipe | 40 x 40 mm; 50 x 50 mm square pipes |
| Horizontal Pipe | 30 x 60 mm; 40 x 80 mm; 115 x42 mm oval rails |
| Welding | Fully welded |
| Finishing / Surface Treatment | 1). Wipe antirust paint on welding seams
2). Wipe antirust paint on welding seams +silver spray painted on
the welding seams
3). Silver spray painted on the whole panel |
| Accessories | 1 set = 2 rain caps + 2 "U" lugs + 2 "L" lugs + 2 pins + 2
footplates |
c. Round Tubes Style:
| Material | Pre hot dipped galvanized steel pipe |
| Zinc Coating | More than 15 microns |
| Height x Length | 1800mm x 2100mm ( 6 rails ); 1600mm x 2100mm ( 5 rails ),
1200x2100mm |
| Vertical Pipe | 32mm OD; 38mm, 40mm OD; 48mm OD. |
| Horizontal Pipe | 32mm OD.; 38mm, 40mm OD.; 48mm OD. |
| Welding | Fully welded |
| Finishing / Surface Treatment | 1). Wipe antirust paint on welding seams
2). Wipe antirust paint on welding seams + silver spray painted on
the welding seams
3). Silver spray painted on the whole panel |
| Accessories | 1 set = 2 rain caps + 2 "U" lugs + 2 "L" lugs + 2 pins + 2
footplates |
3. Producing Process:
1). Pre hot dipped galvanized steel pipe -- welding -- polishing --
wipe antirust paint on welding seams
2). Pre hot dipped galvanzied steel pipe -- welding -- polishing --
wipe antirust paint on welding seams -- silver spray painted on the
welding seams
3). Pre hot dipped galvanzied steel pipe -- welding -- polishing --
silver spray painted on the whole panel
4. Welding Characters:
-- 360 degree firmly welded
-- Welding spots neat and smooth, prevent sheep and goat get hurt,
very safe
-- Welding spots anti-rust finish, very durable
5. Unique Design:
-- Square vertical pipe/post, welding easy and firm, much durable,
and it's more beatiful
-- Oval horizontal rails, no sharp edge, can protect sheep and goat
from getting hurt, high safety
-- Lamb-proof rail spacing
-- Middle braces for high strength and heavy duty
-- With welded top caps and foot plates, water and dust proof
-- Welded "U" and "L" lugs for easy connection. The lugs are welded
to bracket all four sides, very durable.
-- 2xjoining pins are supplied for each panel
-- Footplate on the panel,can cement the panels on the ground by
nails.
-- Easily assembled & disassembled
6. Cattle Panel Gates -- Heavy Duty Swing Gates:
| Height x Length | 2300mm x 2100mm |
| Frame | Horizontal & Vertical pipe: 50 mm x 50 mm with fully welded caps |
| Cattle Gate Horizontal Rail | 6 oval anti-bruise rails "Bull bars" rails |
| Zinc Coating | HDG - 15 microns |
| Finishing / Surface Treatment | 1). Wipe antirust paint on welding seams
2). Wipe antirust paint on welding seams + silver spray painted on
the welding seams
3). Silver spray painted on the whole panel |
| Welding | Fully welded oval pipes, post & brackets , heavy duty hinges |
| Accessories | Supplied with two HDG Bolt Pins with Nuts |
