Custom Non slip walkway Leveled portable cattle loading ramp with
safety rail
There are some types of cattle loading camp for your choice.
| Brand | Jinghua Loading Camp |
| Material | Round/ Oval /Square Iron Pipe Steel Sheet |
| Technical | Full-Length Welding |
| Surface Treatment | Hot Dipped Galvanised Painted Or Powder/ Pvc Coated |
| Color | Silver Or Customized |
| Type | Light Duty, Medium Duty, Heavy Duty, Portable Type, Adjustable Type |
| Feature | Strong, Rust-Roof, Cattle-Protection, Easy-Assemble, Portable |
| Size | Customized |
| Main Market | Australia, New Zealand, South America, Europe. |
A well-designed cattle loading ramp is essential on any property
running cattle. JINGHUA specialises in the provision of quality
steel cattle loading ramps for farms across Australia.
When it comes to cattle ramps, the main principles to remember are:
- A slight curve or deviation in the direction of ramp will increase
the cattle’s willingness to move up the ramp.
- A 1.5m level section at the top of the ramp gives cattle more
confidence to move onto the different flooring material in the
truck with ease.
- A spring-loaded buffer on the front of the ramp protects both the
ramp and the vehicle from damage. It will adjust to the angle of
the truck to ensure that there are no spaces for the cattle to
fall.
- Loading is easier with a raised walkway.
- Side panels should be at least 1.5 metres high. The best internal
width between rails for loading is 750 mm.
JINGHUA cattle ramps come in a range of shapes and sizes to suit
varying farm and cattle requirements. Browse the collection for
more information on the sizes and features of the cattle ramps we
sell. If you have any questions or require further information
don’t hesitate to get in touch with our customer service team
(1) 3.6metre Adjustable Cattle Load Ramp
Heavy duty adjustable 3.6metre ramp, designed with safety in mind
for both operator and beast, featuring JINGHUA's unique spring
assisted adjustment system.
Features
- Contains JINGHUA's unique spring assisted adjustment system
- One hand adjustment operation, with dual pin locking system
- Heavy Duty Construction, manufactured from 115mm x 42mm non-bruise
oval rail
- High tensile pressed metal galvanised sides, adding strength and
reducing noise
- Hardwood timber floor
- Overhead bracing, for additional strength
- Now with Spring assisted adjustable section which reduces the need
for the adjustment bar. This will reduce the weight needed by the
operator to adjust the platform reducing the risk of a strain
injury. Also reduces the risk of the adjustment bar in transport
becoming loose and a load restraint issue.
- Base & front frame now manufactured with 65x65x2mm for improved
strength.
- Forklift hoops on base for ease of loading and handling.
- These also can be supplied with walkways on for added safety.
Optional Features
- Walkway can be provided on either side OR both upon request
(2) 3.6 Metre Cattle Load Ramp
Heavy duty 3.6metre ramp, designed with safety in mind for both
operator and beast. Our most popular fixed height model, suited for
all applications.
Features
- Heavy Duty Construction, manufactured from 115mm x 42mm non-bruise
oval rail
- High tensile pressed metal galvanised sides, adding strength and
reducing noise
- Hardwood timber floor
- Overhead bracing, for additional strength

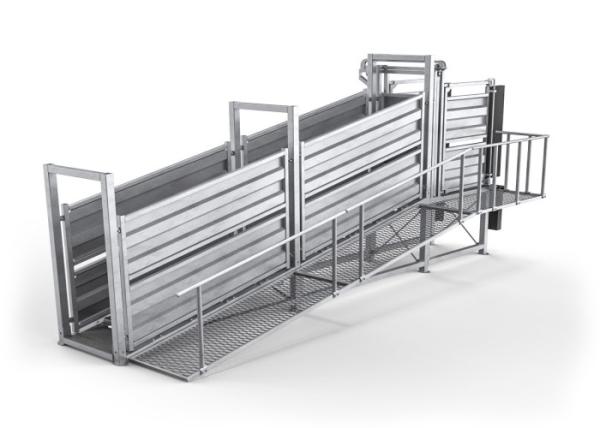

(3) 6 Metre Deluxe Cattle Load Ramp
Our top of the line heavy duty ramp, designed with continuous flow
and high volumn loading and unloading of cattle in mind.
Features
- Heavy Duty Construction, manufactured from 115mm x 42mm non-bruise
oval rail
- Non slip walkway with safety rail and access ladder standard
- Hardwood timber floor
- Manway Gate at top of ramp for easy access to race and truck access
- Batwing doors for side loading at top of platform
- Overhead bracing, for additional strength
- Levelled loading platform at top of ramp
- Slide gate at top of ramp
- Manway gate at base of walkway
- Optional Features:
- Walkway can be provided on either side OR both upon request
- Can be fully sheeted sides
(4) Premier 3 Metre Knock-Down Load Ramp
The PREMIER 3 metre knock-down load ramp, heavy duty construction,
while still offering a portable solution.
Features
- Full portable loading solution
- Simple to erect in minutes
- 5 individual components make up this ramp
- Easily constructed by 2 people in a matter of minutes
- Sheeted galvanised sides, for added strength, noise reduction and
stock and operator safety
- Hardwood timber floor
